Enbio PRO

Process times

All process times are drying included. Start-to-end, from instrument insertion to having them ready.

Unwrapped
FAST / 134°C

9 min

Wrapped
Class B / 134°C

18 min

Wrapped
Class B / 121°C

30 min

Wrapped PRION
Class B / 134°C

43 min

Enbio PRO

All process times are drying included. Start-to-end, from instrument insertion to having them ready.

Process times

Unwrapped
FAST / 134°C

9 min

Wrapped
Class B/ 134°C

18 min

Wrapped
Class B / 121°C

30 min

Wrapped PRION
Class B / 134°C

43 min

Load capacity per process

Accommodates most popular implant cassettes

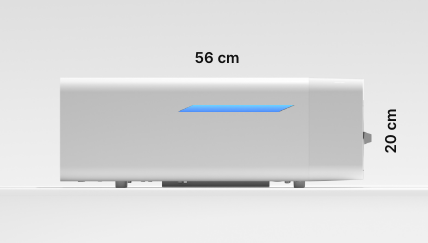

Usable load space
Water supply

Enbio uses distilled water from external tank.

Power supply

Enbio S works with any typical electrical outlet.

Data archiving

All process data are automatically written to a USB disk.

Process reports

Dedicated software for process data reading and printing.

Pressure and temperature
Working pressure2.1 Bar
Max. pressure2.3 Bar
Max. process temperature138°C
Electrical
Power supply220-240V/50-60Hz
Installed power3,25 kW
Max. power consumption15 A
Miscellanous
Ingress protectionIP20
Data archivingUSB stick
Water conductivity*< 15 μS/cm
